New Model: AW-3000
At ATS, we recognized the need for a cost effective automated portable air & water test kit. The result of over 1 year of development is our newly released Model: AW-3000. This kit is packed with features that mimic our state-of-the-art large scale laboratory test equipment. This ruggedized test kit is designed for field, laboratory and in-line QC testing applications, and will exceed your demanding expectations. Meets ASTM, AAMA, CSA & NAFS test standards.
Key Features
- Ruggedized case with wheels and pull out handle for ease of transport
- Automated (computer controlled) and Manual (computer not required)
- On-board Color Display (works in Manual Mode): Test Pressure and Airflow displayed
- Precision Laminar Flow Element (LFE) for precise airflow measurements (infiltration and exfiltration)
- Automated “plug-n-play” PC control. User-Friendly software controls the AW-3000 using a standard USB port – software includes test reporting features
- Medical grade industrial high flow blower (reliable and quiet)
- ASTM E783
- ASTM E283
- ASTM E1105
- ASTM E331
- ASTM E547
- Organized Storage: 6’ Hose/Tube, 9’ Power Cord, USB cable & Interface Plate stores neatly in lid
- Versatile : Laboratory & Field Certification, R&D and in-line QC Testing
All systems include: Verification Document, On-board Software, Operation Manual & Technical Support - International: Dual units (SI or EU) and other power options available (120 VAC, 60 Hz standard)
- Spare Power Outlet: is built-in for computer charging
- Option: Manual Control Module (MCM) – Includes an On-Board Color Display reading Airflow (CFM or L/s) and Test Pressure (PSF or Pa), Manual blower speed dial and toggle switch
- Option: Environmental Upgrade (EMM) – Temperature, humidity and barometric pressure data collected and stored when computer controlled and airflow measurements corrected
- Option: Laboratory Option (LAB) – For interfacing with ATS test wall system, includes water spray pressure monitoring system, mobile industrial security cart, cam-lock fittings, test wall pressure monitoring diverter valve
- Option: Auxiliary Blower Kit (BP-3000) – Tandem remote controlled matching blower doubles blower capacity when used with AW-3000
*Includes: 6’ blower hose, pressure interface port, blower control dial (for manual control). No Pressure monitoring - Option: Additional length hoses and pressure monitoring ports
- Option: Ruggedized test computer built to military-grade standards with pre-loaded ATS software

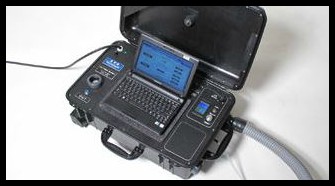

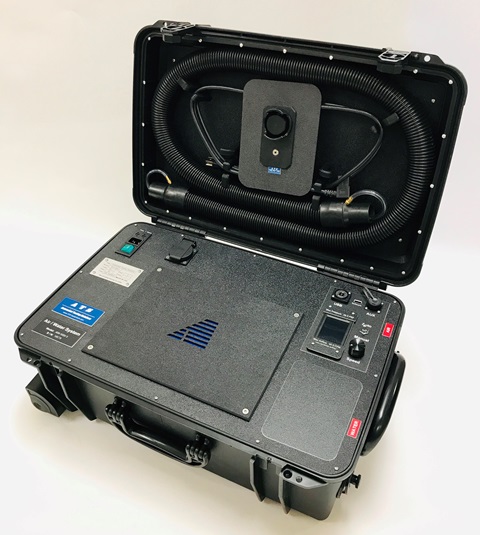

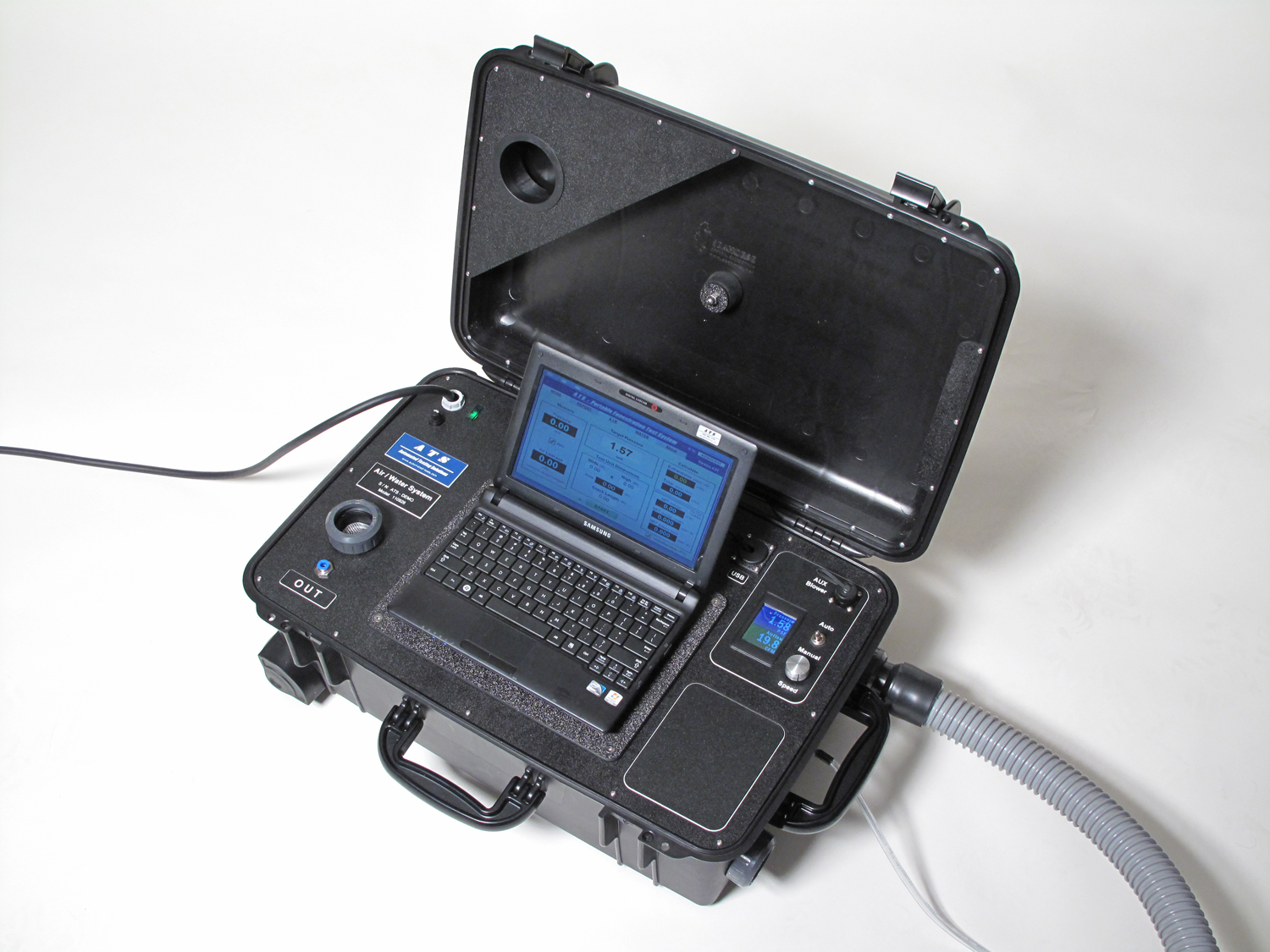

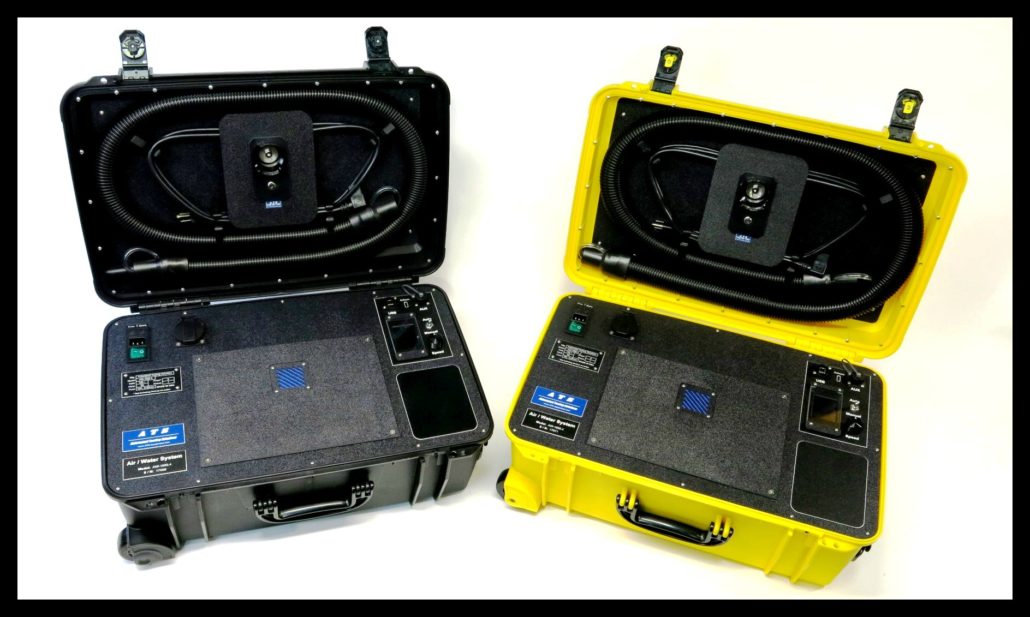

AW-3000 Ruggedized / Dual Mode / USB Color Display

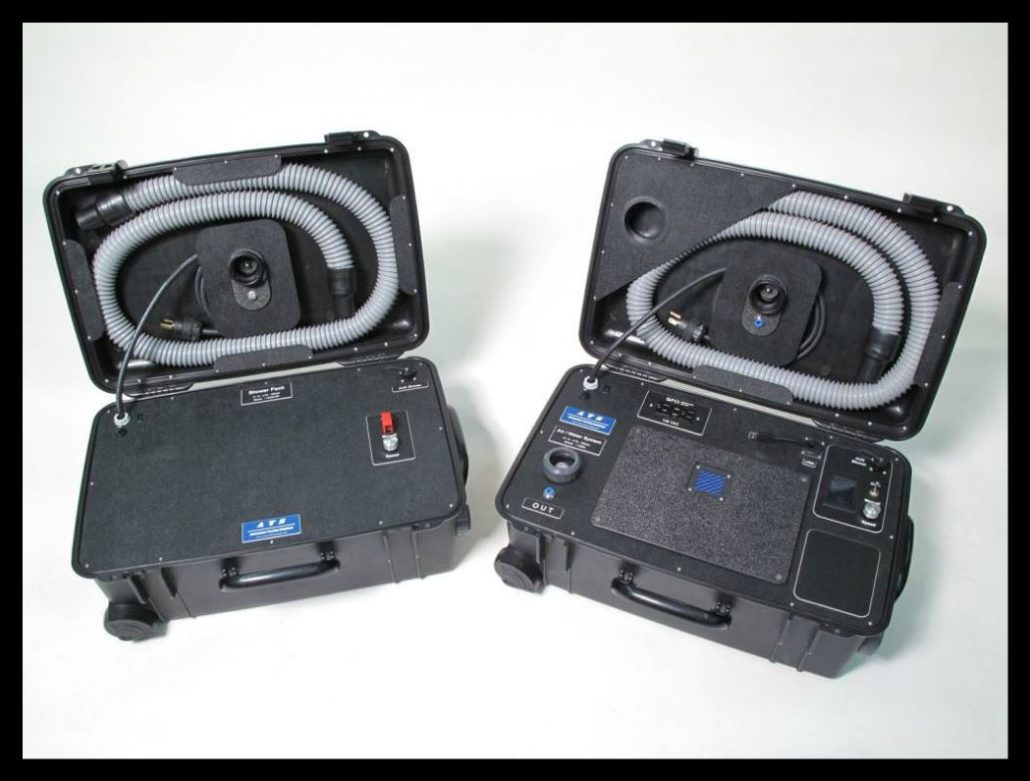

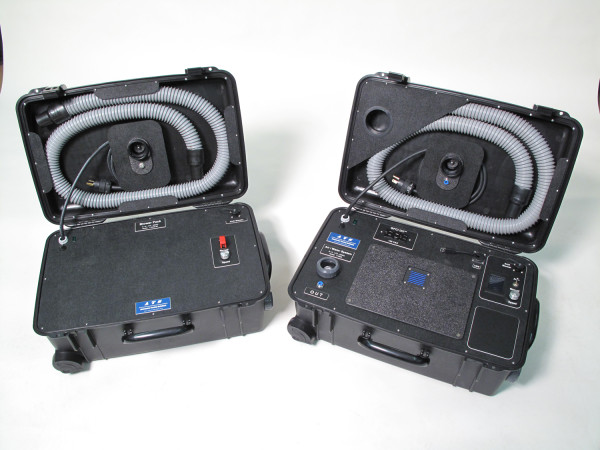

Auxiliary Blower Pack & AW-3000

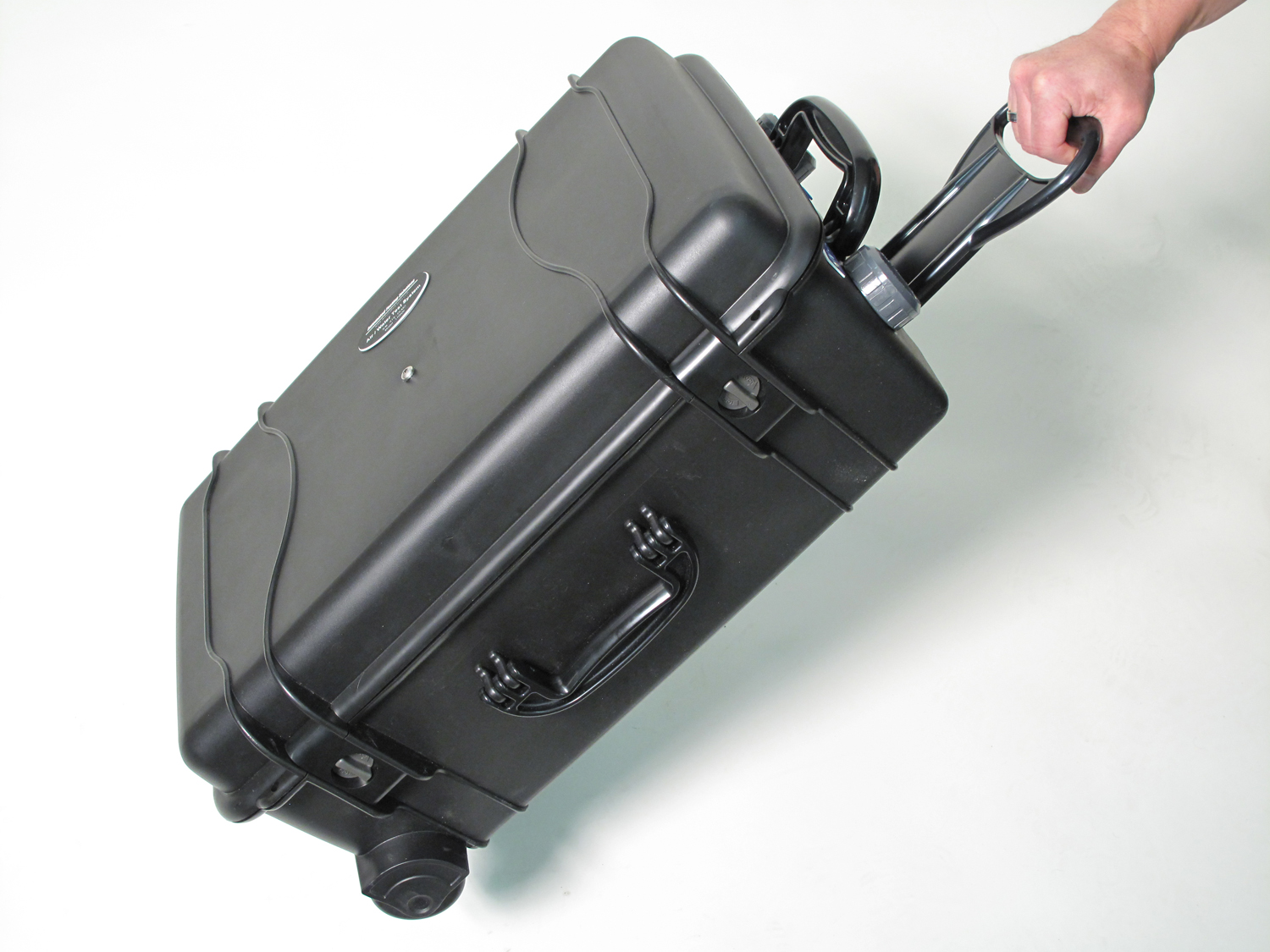

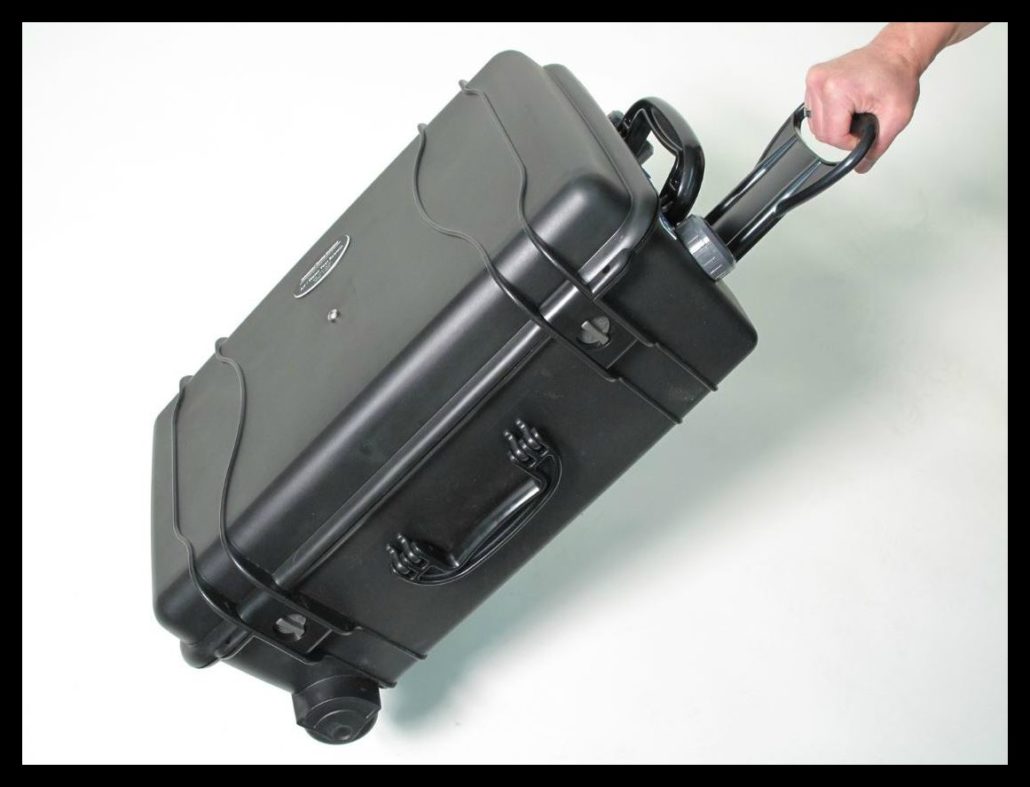

Portable Wide track wheels and retractable pull handle
